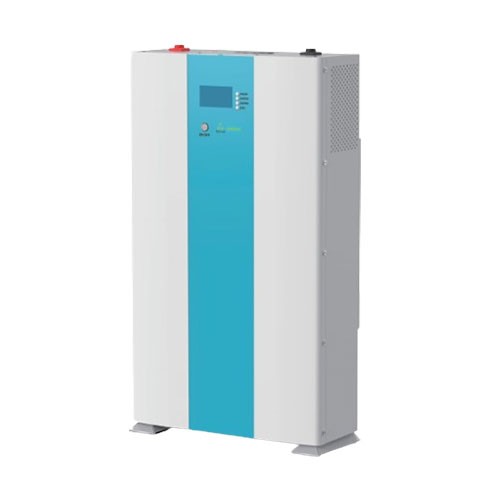

Household wall-mounted battery pack 51.2V200AH with rated energy of 10240Wh. Max continuous charge & discharge current reaches 150A. Compact wall-mounted structure saves space. Equipped with intelligent BMS protection system and supports multi-protocol communication interfaces. Suitable for outdoor PV energy storage systems, household UPS backup power, small-scale emergency power supply, civil security power supply and other scenarios.
Household wall-mounted battery pack 51.2V200AH with rated energy of 10240Wh. Max continuous charge & discharge current reaches 150A. Compact wall-mounted structure saves space. Equipped with intelligent BMS protection system and supports multi-protocol communication interfaces. Suitable for outdoor PV energy storage systems, household UPS backup power, small-scale emergency power supply, civil security power supply and other scenarios.
Specification 51.2V 200Ah, rated energy up to 10240Wh;
Continuous charge & discharge current 0~150A to support high-power household appliances;
Ultra-long cycle life of 6000 times, excellent cost performance for long-term residential application.
Built-in intelligent BMS with intelligent protection against overvoltage, undervoltage and overload;
Real-time monitoring of short circuit and overheating faults, rapid power cut under abnormal conditions;
Wide operating temperature range of -20~60℃, compatible with various indoor and outdoor installation environments.
Standard industrial communication interfaces: RS232, RS485, CAN;
Optional APP monitoring module to remotely check battery operating data via mobile phone;
Fully compatible with mainstream household PV inverters for easy construction of PV & storage systems.
Wall-mounted design supporting floor standing or wall mounting to save indoor space;
Ideal for outdoor PV energy storage and household emergency backup power during blackouts;
Integrated cabinet with attractive appearance, easy installation and simple daily maintenance.
| Product Name | Household Wall-mounted Battery Pack |
| Model | 51.2V200AH |
| Nominal Voltage | 51.2V |
| Nominal Capacity | 200Ah |
| Rated Energy | 10240Wh |
| Continuous Charge & Discharge Current | 0~150A |
| Cut-off Voltage for Charge & Discharge | Charge: 58.4V / Discharge: 44.8~46.5V |
| Communication Interface | RS232, RS485, CAN |
| Cycle Life | 6000 Cycles |
| Operating Environment | Temperature: -20~60℃; Humidity ≤95%; Altitude ≤4000m |
| Product Dimensions | 720*420*160/795*500*240mm |
| Weight | 79.5/90.5kg |
