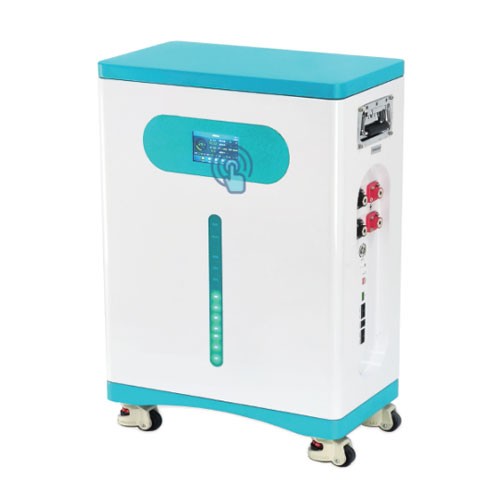

Household wheeled battery pack 51.2V400AH with rated energy of 20480Wh. Continuous charging current: 0~150A, continuous discharging current: 0~200A. Equipped with touch display, standard Bluetooth & WiFi APP monitoring module. Universal casters at the bottom enable easy movement. Built-in intelligent BMS system. Widely used in outdoor PV energy storage, UPS backup power, communication equipment, medical devices, emergency power supplies, fire protection and security systems.
Household wheeled battery pack 51.2V400AH with rated energy of 20480Wh. Continuous charging current: 0~150A, continuous discharging current: 0~200A. Equipped with touch display, standard Bluetooth & WiFi APP monitoring module. Universal casters at the bottom enable easy movement. Built-in intelligent BMS system. Widely used in outdoor PV energy storage, UPS backup power, communication equipment, medical devices, emergency power supplies, fire protection and security systems.
Specification 51.2V 400Ah, rated energy up to 20480Wh;
Continuous discharge current 0~200A to support operation of high-power household loads;
Ultra-long cycle life of 6000 times, lower cost for long-term energy storage application.
Built-in intelligent BMS with multiple protections including overvoltage, undervoltage and overload;
Real-time monitoring of short circuit and overheating abnormalities with automatic power-off protection;
Wide operating temperature range of -20~60℃, suitable for various indoor and outdoor environments.
Equipped with multiple interfaces: RS232, RS485, CAN, WiFi and Bluetooth;
Standard touch screen, Bluetooth and WiFi APP to check battery status anytime;
Compatible with mainstream PV inverters for fast construction of high-power household PV & storage systems.
Universal casters installed at the bottom of cabinet for free pushing and position adjustment;
Suitable for outdoor PV energy storage and high-power emergency backup power during power outages;
Integrated unit design with concise appearance, convenient transportation and maintenance.
| Product Name | Outdoor Wheeled Battery Pack |
| Model | 51.2V400AH-LS |
| Nominal Voltage | 51.2V |
| Nominal Capacity | 400Ah |
| Rated Energy | 20480Wh |
| Continuous Charge & Discharge Current | Charge: 0~150A / Discharge: 0~200A |
| Cut-off Voltage for Charge & Discharge | Charge: 58.4V / Discharge: 44.8~46.5V |
| Communication Interface | RS232, RS485, CAN, WiFi, Bluetooth |
| Cycle Life | 6000 Cycles |
| Operating Environment | Temperature: -20~60℃; Humidity ≤95%; Altitude ≤4000m |
| Product Dimensions | 670*300*800 / 820*690*458mm |
| Weight | 133/150kg |
