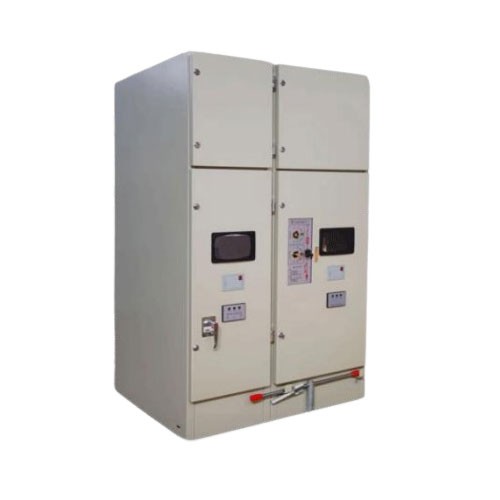

HXGN-12 Box-type Metal-enclosed Ring Main Switchgear features compact size, light weight, simple operation, safe application, convenient maintenance and stable reliable performance without risk of fire or explosion. It can be wall-mounted to save floor space. The ring main unit is applied in power distribution systems with three-phase rated voltage up to 10kV and frequency 50Hz for industrial & mining plants, residential districts, high-rise buildings, schools and parks. It receives and distributes electric power for ring network power supply and terminal power supply.
HXGN-12 Box-type Metal-enclosed Ring Main Switchgear features compact size, light weight, simple operation, safe application, convenient maintenance and stable reliable performance without risk of fire or explosion. It can be wall-mounted to save floor space. The ring main unit is applied in power distribution systems with three-phase rated voltage up to 10kV and frequency 50Hz for industrial & mining plants, residential districts, high-rise buildings, schools and parks. It receives and distributes electric power for ring network power supply and terminal power supply.
Small cabinet size and light weight, wall mountable to greatly save space in power distribution rooms;
Standard dimensions (375-1000)*(1000)*2200, non-standard customization available;
Stable overall structure with hidden risks of fire and explosion eliminated during operation.
Applicable to ≤10kV distribution systems for factories, mining areas, residential communities, high-rise buildings, schools and parks;
Suitable for both ring network power supply and terminal load distribution;
50Hz power frequency, fully compliant with domestic urban power grid standards.
HXGN-12/630-20: Rated current 630A, short-time withstand current 20kA;
HXGN-12/125-31.5: Rated current 125A, short-time withstand current 31.5kA;
Control power supply supports AC220/DC220/DC110V, compatible with various secondary circuits.
Rated operating voltage 12kV, power frequency withstand voltage 42kV with sufficient insulation margin;
Cabinet protection class IP40, effectively preventing dust and solid foreign objects from contacting live components;
Easy-to-understand operating mechanism for convenient routine inspection and maintenance.
| Product Name | HXGN-12 Box-type Metal-enclosed Ring Main Switchgear |
| Model | HXGN-12/630-20, HXGN-12/125-31.5 |
| Cabinet Dimensions (W*D*H) | (375-1000)*(1000)*2200, non-standard size available |
| Control Power Supply | AC220/DC220/DC110V |
| Rated Current | 630A, 125A |
| Short-time Withstand Current | 20kA, 31.5kA |
| Rated Operating Voltage | 12kV |
| Rated Insulation Voltage (Power Frequency Withstand Voltage) | 42kV |
| Frequency | 50Hz |
| Protection Class | IP40 |
