High/low voltage cabinets, transformer, metering, compensation and lightning protection devices are fully integrated in factory;

Internal cables and busbars are uniformly wired, with overall commissioning finished before delivery;

Only incoming & outgoing cable connection required on site, greatly shortening construction cycle.

Compatible with 12/0.4kV three-phase AC distribution system, realizing high-voltage power reception, voltage transformation and low-voltage power distribution;

Equipped with complete functions: reactive power compensation, energy metering and lightning protection;

Widely applied in urban power grids, residential communities, industrial parks, construction sites, road lighting and other occasions.

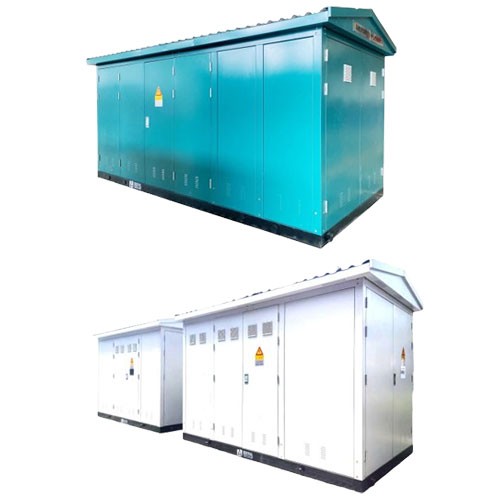

Model YBW-12/0.4-1600, maximum rated capacity: 1600kVA;

Overall appearance, primary circuit scheme and secondary circuit can be customized according to project requirements;

Multiple control power supply options available to match various control systems.

Adopts mechanical forced air cooling to guarantee continuous operation of transformer;

Protection class IP33D, dustproof, rainproof and foreign object resistant for outdoor installation;

50Hz power frequency, compliant with national standard urban and rural distribution networks.
