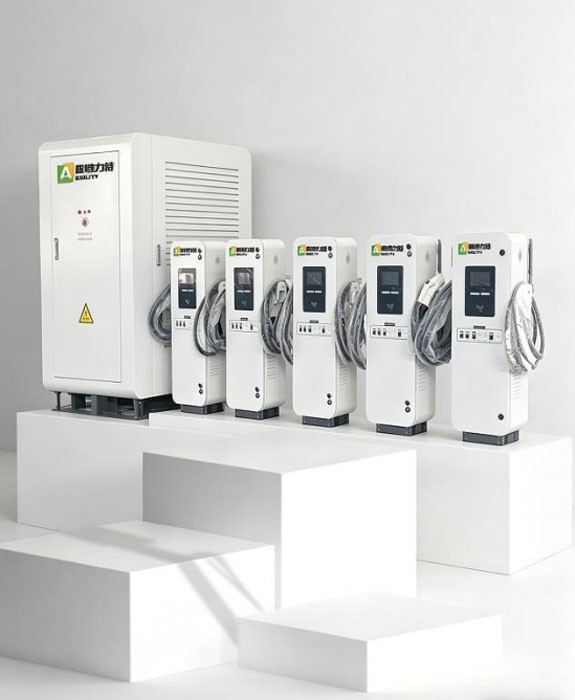

640KW-2500KW Ultra Mega Charging Station

The 640KW-2500KW Ultra Mega Charging Station adopts an industry-leading multi-unit parallel connection solution, supporting group control and power allocation to realize flexible charging power adjustment. It is suitable for high-power charging scenarios including battery swapping stations, bus depots, mining sites, ports and logistics parks.

640KW-2500KW DC Charger - Product Details

640KW-2500KW Ultra Mega Charging Station

Core Product Advantages

Flexible Capacity Expansion

Support parallel connection of multiple units for on-demand power expansion;
Modular design enables convenient later-stage capacity expansion;
Flexible configuration according to charging demands to reduce equipment idle rate.

Stable & Efficient

High overall efficiency and shortened charging duration;
Support simultaneous charging for multiple vehicles to improve station utilization;
Complete protection mechanisms ensure stable equipment operation.

Product Specifications

Model	SNZC-640K/2500K-A2
Rated System Power	640KW-2500KW
Input Parameters
Rated Input Voltage	380VAC
Input Voltage Range	323VAC-437VAC
Input Current Range	1210A, 4750A
Output Parameters
Output Voltage Range	150VDC-1000VDC
Max. Output Current	2130A, 8250A
Basic Characteristics
Peak Efficiency	≥96%
BMS Auxiliary Power	12VDC (24VDC customizable)
Activation Method	QR Scan, Card Swipe, VIN
Installation Type	Floor-standing
HMI	7-inch Touch LCD Screen
Communication Interface	Ethernet / 4G LTE (Optional)
Number of Charging Ports	2
Charging Cable Length	5m (Optional: 7m / 10m)
Protection Class	IP54
Operating Temperature	-20℃~+50℃ (Power derating required from +50℃ to +70℃)
Operating Humidity	5%~95%RH (Non-condensing)
Altitude	2000m (Power derating required for 2000m-4000m)
Dimensions(WDH)	210011901964mm
Weight (Including Modules, Excluding Pedestal)	≤1500kg
