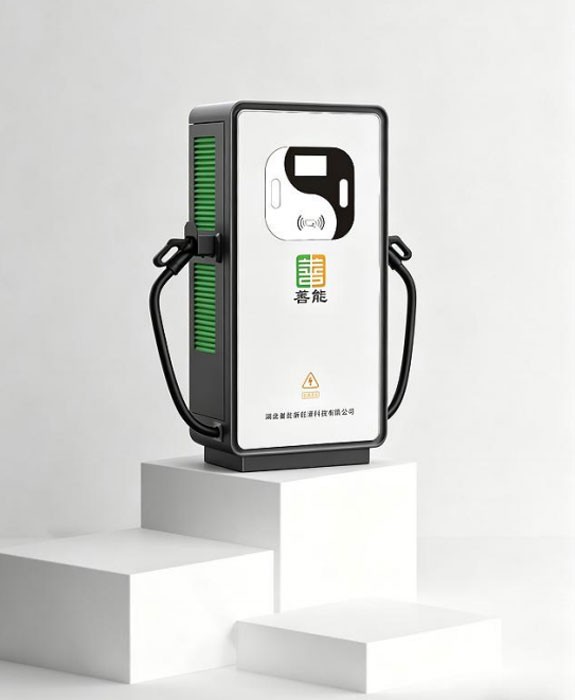

The 60KW integrated DC charger integrates intelligent control, precise measurement, multiple communication, and convenient installation features, providing safe, reliable, stable, and efficient charging services for electric vehicles. It is suitable for medium and low-power charging scenarios such as shopping malls, office buildings, and parks.
60kW integrated DC charger. Adopting advanced design concept and mature technology, it provides safe, economical and convenient charging solutions for electric vehicles. Suitable for charging stations, commercial parking lots, fleet depots and other medium‑power charging scenarios.
Fully digital control with 360‑degree protection and dynamic protection mechanism;
24‑item dynamic data monitoring including abnormal BMS data, battery thermal runaway and connector over‑temperature for high charging safety;
Support OTA remote upgrade and online status diagnosis for reliable operation.
Peak efficiency over 95.5%, lower operating cost;
Wide output voltage range, compatible with most EV models;
Auxiliary cold light and embedded QR‑code design with compact structure.
| Model | SNZC‑60K‑A2 |
| Rated System Power | 60KW |
| Input Parameters | |
| Rated Input Voltage | 380VAC |
| Input Voltage Range | 323VAC‑437VAC |
| Max Input Current | 120A |
| Output Parameters | |
| Output Voltage Range | 50VDC‑1000VDC |
| Max Output Current | 125A |
| General Characteristics | |
| Peak Efficiency | ≥95.5% |
| BMS Auxiliary Power | 12VDC(24VDC optional) |
| Start Mode | QR‑code / Card swiping / VIN |
| Installation | Floor‑standing |
| HMI | 7‑inch Touch LCD Screen |
| Communication Interface | Ethernet / 4G LTE(Optional) |
| Charging Connector Quantity | 1 pcs |
| Cable Length | 5m (Optional:7m/10m) |
| Protection Class | IP54 |
| Operating Temperature | -20℃~+50℃(Power derating above +50℃) |
| Operating Humidity | 5%~95%RH (Non‑condensing) |
| Altitude | 2000m(Power derating 2000m‑4000m) |
| Dimension(W*D*H) | 700*550*1350mm |
| Weight(With modules, excluding pillar) | ≤120kg |
