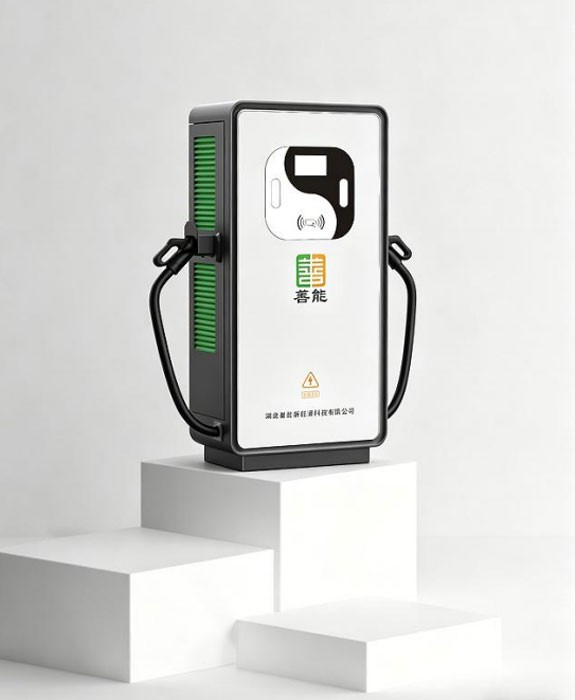

120KW-240KW DC Charger

The 120-240kW integrated DC charger adopts advanced design concepts and mature technology. It provides safe, economical and convenient charging solutions for electric vehicles, suitable for high-power charging scenarios such as bus stations, fast charging stations and dedicated charging depots.

120KW-240KW DC Charger - Product Details

120KW-240KW DC Charger

Core Product Advantages

Safe & Intelligent

Fully digital control, 360° protection coverage and dynamic protection mechanism;
24 dynamic data monitoring items including abnormal BMS data, battery thermal runaway and connector over-temperature to ensure high charging safety;
Support OTA remote upgrade and online status diagnosis for reliable operation;

Powerful Performance & Elegant Appearance

Peak efficiency over 96% for low operation cost;
Ultra-wide charging voltage range compatible with various vehicle models;
Cold light auxiliary lighting and embedded QR code design with exquisite outlook.

Product Specifications

Model	SNZC-120K/240K-A2
Rated System Power	120KW-240KW
Input Parameters
Rated Input Voltage	380VAC
Input Voltage Range	323VAC-437VAC
Input Current Range	200A, 400A
Output Parameters
Output Voltage Range	50VDC-1000VDC
Max. Output Current	200A, 400A with dual guns
Basic Characteristics
Peak Efficiency	≥96%
BMS Auxiliary Power	12VDC (24VDC customizable)
Activation Method	QR Scan, Card Swipe, VIN
Installation Type	Floor-standing
HMI	7-inch Touch LCD Screen
Communication Interface	Ethernet / 4G LTE (Optional)
Number of Charging Ports	2
Charging Cable Length	5m (Optional: 7m / 10m)
Protection Class	IP54
Operating Temperature	-20℃~+50℃ (Power derating required from +50℃ to +70℃)
Operating Humidity	5%~95%RH (Non-condensing)
Altitude	2000m (Power derating required for 2000m-4000m)
Dimensions(WDH)	8006001425mm
Weight (Including Modules, Excluding Pedestal)	≤165kg
