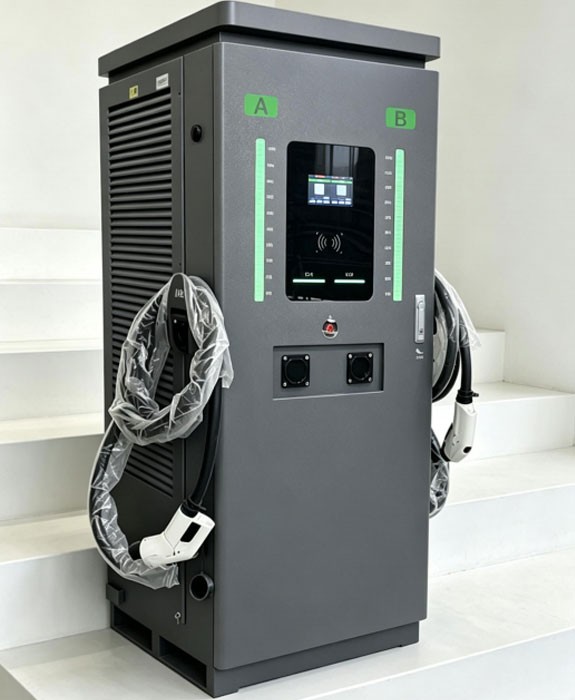

320KW Visual DC Charger

Suitable for large charging stations, industrial parks, logistics companies, heavy trucks, mining trucks and other operation scenarios. It supports remote visual monitoring of charging progress and enables rapid recharging. This 320kW integrated dual-gun DC charger supports dual-gun simultaneous charging and single-gun independent charging.

320KW Visual DC Charger - Product Details

320KW Visual DC Charger

Core Product Advantages

Intelligent Operation

Two versions available: non-operational & operational; multiple activation modes including plug-and-charge, card swipe and QR scan;
Support WeChat / Alipay / App QR payment and billing via VIN recognition;
OTA remote upgrade and online status diagnosis for stable and reliable long-term operation;

Comprehensive Safety & Strong Compatibility

Full-range protection: overvoltage, undervoltage, overcurrent, short circuit, insulation monitoring, lightning protection, earth leakage protection and other safeguards;
Air cooling system, IP54 protection grade, floor-mounted installation for indoor and outdoor sites;
Compatible with mainstream third-party operation platforms including Yunkuaichong, Weijing Cloud and Dake Cloud.

Product Specifications

Model	SNZC-320K-KS
Rated System Power	320kW integrated dual-gun; support dual-gun simultaneous charging and single-gun independent charging
Input Parameters
AC Input Voltage	380V±15%
AC Input Current	Max 520A
AC Input Frequency	50Hz±10%
AC Input Mode	3-phase 5-wire
Output Parameters
DC Output Voltage Range	DC 200-1000V
DC Output Current Range	Single gun Max 250A; Dual guns Max 320A
Basic Characteristics
Display Screen	Color LCD Touch Screen
Activation Method	Non-operational version: Plug-and-charge / Offline card swipe (2 pcs M1 cards included); Operational version: Card swipe billing / WeChat QR scan / Mini Program
Operation & Billing	Card swipe, online QR scan, VIN identification
Payment Method	QR Payment (WeChat / Alipay / App)
Network Connection	Ethernet (Standard), 4G (Custom Optional)
Charging Mode	Auto full charge; Custom options: Timed / Energy target / Amount target
Energy Metering	Class 1.0, Compliant with GB Standards
Compliance Standards	GB/T18487.1, GB/T27930, GB/T34657.1
Protection Class	IP54
Cooling Method	Air Cooling
Operating Temperature	-20℃～+50℃
Relative Humidity	5%～95% Non-condensing
Installation Type	Indoor & Outdoor, Floor-mounted
Altitude	≤2000m
Charging Cable	5m Standard, Optional: 7m
Dimensions(mm)	700x410x1880
Weight(kg)	428
Supported Platforms (Operational Version)	Compatible with Yunkuaichong, Weijing Cloud, Dake Cloud, e-charging and others (Platform must be confirmed when ordering operational version)
Intelligent Security	OTA remote upgrade, online status diagnosis, high operational stability
Protection Functions	Charging gun temperature detection, overvoltage protection, undervoltage protection, overload protection, short circuit protection, earth protection, over-temperature protection, low-temperature protection, insulation monitoring, reverse polarity protection, lightning protection, emergency stop protection, leakage protection
